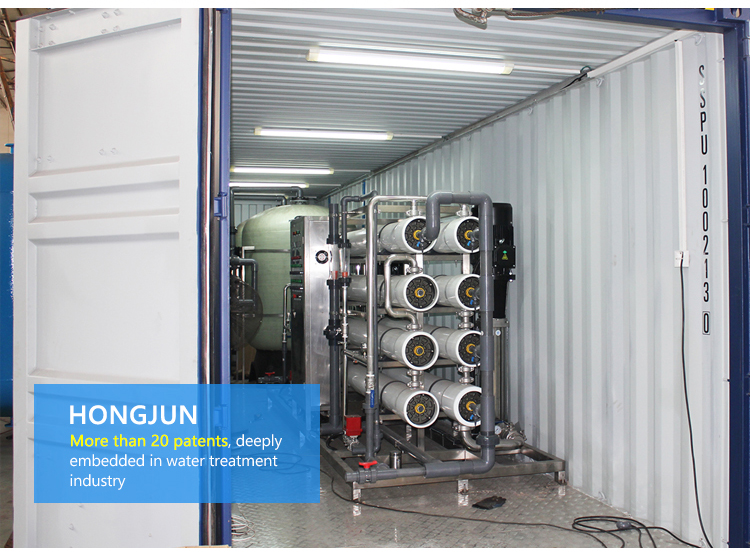

Containerized Precision Filtration Reverse Osmosis Water Treatment
Equipment
1. Overview
Reverse osmosis is the process of forcing a solvent from a region
of high solute concentration through a semipermeable membrane to a
region of low solute concentration in the result of applying an
external pressure to reverse the natural flow of pure solvent.The
solute is retained on the pressurized side of the membrane and the
pure solvent is allowed to pass to the other side.A effective
membrane should not allow large molecules or ions through the pores
,but should allow smaller components of the solution(such as the
solvent) to pass freely.Therefore,it is an appreciated water
processor to remove impurities from water.
2.Features
1.The reverse osmosis membrane desalt technique features higher
efficiency, cost effective and reliable compared with common ion
exchange and distilling method
2.RO membrane: imported GE membrane,high disalination
rate,lowoperation cost,RO membrane auto wash and manual wash
Pre-treatment system:304 Stainless steel tank with Auto
valve,realizing operation unmanned.
3.Pumps:imported Grandfos booster pump,high effeciency with low
noise,realiable and stable.
4.Control system:On-line monitoring and controlling the water
quality,monitoring the water quality change condition
timely,guarantee the water quality.
5.Brief flow chart:
Inhibitors→Raw water→Raw water pump→Sand filter→Carbon filter→5um
Security filter→High pressure pump→Reverse osmosis→Outlet pure
water→Cleaning tank → Cleaning pump
III .RO desalination advantages
1.97% Desalination Rate
2.50%-75% Recovery Rate
3.Low operating cost
4.Simple system integration with high efficiency and low noise
5.Flexible system configurations to meet a wide range of needs
6.Engineered to last with all stainless steel components
4. Applications
• Laboratory
• Electronics/Metal finishing/ Metalworking/Automotive
• Pharmaceutical/biotech
• Hotels, Resorts, Schools
• Beverage/bottling/Food processing
• Chemical blending/Manufacturing/Mining
• Pulp and paper/Textile
