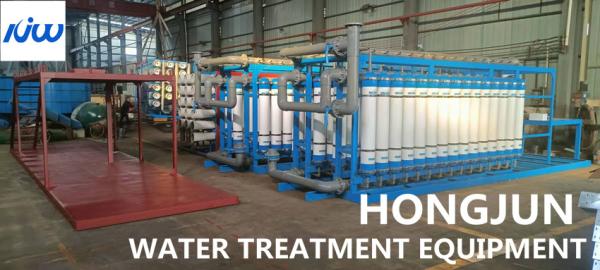

RO+UF packaging circulating water purification and reuse system
Application Range:
- Semi-conductor materials ,element ,printed circuit boards and
integrated circuits ;
- Ultra pure materials and Ultra pure chemcial reagents ;
- Laboratory and Medium test
- Surface polishing treatment for automobile and household
appliances.
- Optoelectronic Products;
- Other high- tech micro product;
UF Work Principle:
The Ultrafiltration is used to screening as separation principle
,that is process of membrane separation with the pressure ,the
precision of filtration is in 0.005-0.01μm range,which can
effectively remove particles ,colloids ,bacteria ,pyrogen and high
polymer organic matter in water .It can be widely applied to the
separation ,concentration,purification of substances .The Ultra
filtration Process has no phase inversion , operation under normal
temperature.It is better to separate for pyrogen ,and have good
resistance heat ,resistance acid &alkali and oxidation
resistance ,and it is continuously used under 60℃ and PH 2-11 for a
long time.
The Comparision of the kind of membrane :
| Hollow Fibre | Spiral-wound | Ceramic Tubular | Plate and Frame |
| PH | 2-13 | 2-11 | 3-7 | |
| Feed Pressure(psi) | 9-15 | <30-120 | 60-100 | |
| Backwash Pressure(Psi) | 9-15 | 20-40 | 10-30 | |
| Temperature(°c) | 5-30 | 5-45 | 5-400 | |
| Total Dissolved Solids(mg/L) | <1000 | <600 | <500 | |
| Total Suspended Solids(mg/L) | <500 | <450 | <300 | |
| Turbidity(NTU) | <15 | <1 | <10 | |
| Iron(mg/L) | <5 | <5 | <5 | |
| Oils and Greases(mg/L) | <0.1 | <0.1 | <0.1 | |
| Solvents , phenols(mg/L) | <0.1 | <0.1 | <0.1 |
|
What you can do
1.Tell us what`s your raw water as input water for our ro water
treatment system first.If possible , it`s better you can give us a
water analysis report ,so or engineer can design a suitable system
to u.
2.Then tell us what`s the water production flow rate you need per
hour ?
3.Tell us what`s the application of pure water from ro water
treatment system,for drinking
,industrial,hospital,Pharmaceutical,chemical experiments,lab test
or others ?
4.Lastly,pls tell us your requirements for the pure water quality
,material of pipes and filters housing,and the brands of meters and
fittings.
We look forward to cooperating with you.
